JHS Pedals 3 Series - Oil Can Delay

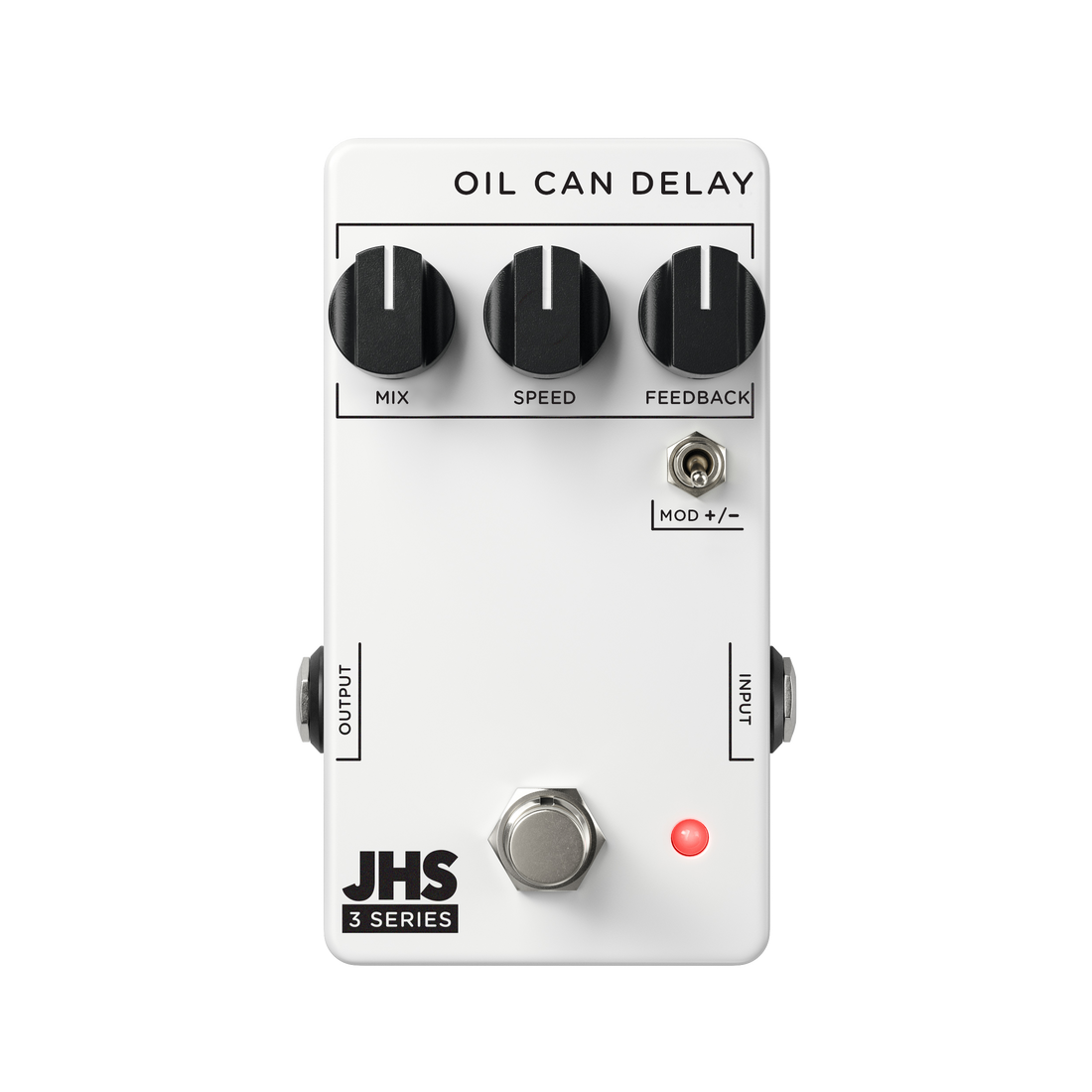

JHS Pedals 3 Series Oil Can Delay

The JHS 3 Series Oil Can Delay captures the unique character of vintage oil can delay units in a simple, affordable, and easy-to-use pedal. Inspired by the classic electrostatic delay devices of the 1950s and 1960s, it delivers warm echoes with a distinctive modulation and warble that blend elements of slapback, vibrato, and delay into one unforgettable effect.

Designed with the straightforward control layout that defines the JHS 3 Series, the Oil Can Delay features controls for Mix, Speed, and Feedback, along with a modulation intensity toggle that lets you choose between subtle movement and a more pronounced vintage-style wobble.

Perfect for adding depth to clean tones, creating ambient textures, or achieving classic lo-fi echo effects, the Oil Can Delay brings a unique voice to any pedalboard.

Controls:
• Mix – Adjusts the blend between the dry signal and delayed signal.
• Speed – Controls delay time from approximately 100ms to 330ms.
• Feedback – Controls the number of delay repeats.
• +/- Toggle – Selects between light and heavy modulation intensity. Modulation speed follows the delay time setting.

Features:
• Vintage-inspired oil can delay effect
• Delay times from 100ms to 330ms
• Built-in modulation for authentic oil can-style warble
• Simple 3-knob control layout
• Modulation intensity toggle switch
• Compact pedalboard-friendly enclosure
• Made in Kansas City, Missouri

Specifications:
• Controls: Mix, Speed, Feedback
• Toggle: Light/Heavy Modulation
• Input: 1/4" Mono
• Output: 1/4" Mono
• Power Requirement: 9V DC Center Negative
• Current Draw: 65mA
• Dimensions: 4.42" x 2.38" x 1.22"

Important: Requires a standard 9V DC center-negative power supply. Do not use more than 9V DC. Using improper voltage will void the manufacturer's warranty.
